50TPD Containerized Water Treatment Plant | Mobile Containerized Water Purification System
Optimized for Flexibility and Efficiency in Water Treatment and Purification
Introduction to Containerized Water Treatment Plants
The 50TPD Containerized Water Treatment Plant offers a cutting-edge solution for a wide range of water treatment applications. This mobile, compact, and efficient system is designed to address water purification challenges across various industries, including public delivery, mining, agriculture, disaster relief, military applications, and more. Whether you need potable water or wastewater treatment, this system ensures high-quality results with minimal installation time and space.
Containerized Water Treatment Systems are becoming increasingly popular due to their mobility and efficiency. These systems, housed in 20-ft or 40-ft containers, provide a complete solution for on-site water treatment. The plants use advanced filtration methods such as reverse osmosis (RO), ultrafiltration (UF), and media filtration systems. They are customizable, flexible, and designed for rapid deployment in any setting, from emergency disaster relief zones to industrial plants.
Key Benefits of Containerized Water Treatment Systems
Compact and Space-Saving: Optimized for use in limited spaces, ideal for remote locations or construction sites.
Fast Setup: Systems arrive pre-installed and require minimal setup time, allowing for swift deployment in emergency or temporary use cases.
Mobile and Flexible: Containerized solutions are portable, making them easy to transport and relocate to different sites as needed.
High Efficiency: Cutting-edge filtration technology ensures water is purified to the highest standards, whether it's for drinking water, industrial use, or wastewater treatment.
Applications of Containerized Water Purification Systems
Containerized Water Treatment Systems are ideal for industries that require reliable, on-demand water purification. Some of the most common applications include:
Public Delivery Systems: Provide clean and safe drinking water for communities, especially in remote or rural areas.
Mining and Construction: Supply process water and treat wastewater in challenging environments.
Military and Disaster Relief: Quickly deployable solutions for emergency water purification in disaster-stricken areas.
Agriculture: Purify irrigation water or supply clean drinking water to livestock and workers.
Swimming Pools & Spas: Ensure safe, clear water by efficiently removing contaminants.
Features of the 50TPD Containerized Water Treatment Plant
Compact Design: Modular, skid-mounted containerized systems fit easily into tight spaces.
Customizable Flow Rates: Available in various capacities, from 10TPD to 50TPD, with options for higher flows.

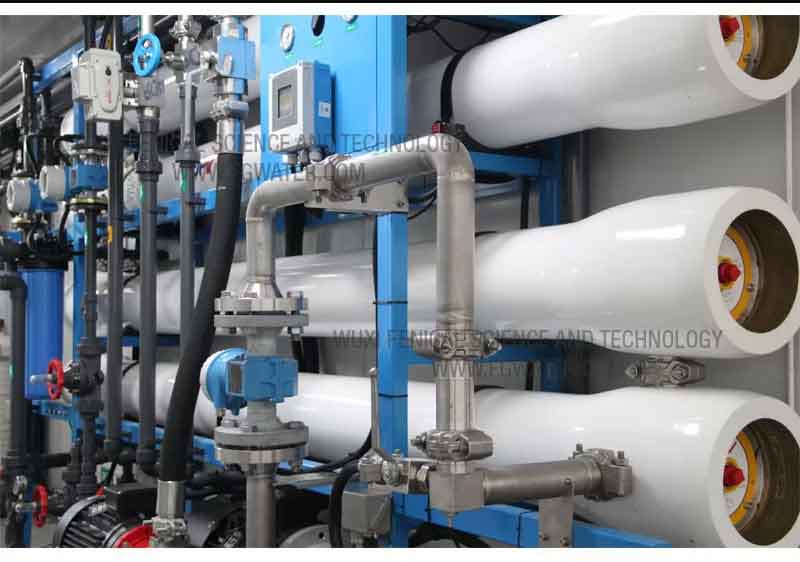

Advanced Filtration Technology: Equipped with state-of-the-art reverse osmosis (RO) membranes (Hydranautics or DOW) and ultra-filtration (UF) technology.
Robust Construction: Made from high-quality SS304/SS316L stainless steel, carbon steel, and other durable materials for long-lasting performance.
Simple Operation: Easy-to-use electronic or manual controls, with the option for PLC-based automation.
Containerized Water Treatment Systems for Different Water Sources
Our containerized systems are designed to treat various water sources, including brackish, seawater, and surface water. Whether you need high-purity drinking water or efficient wastewater treatment, we offer tailored solutions to meet your needs. Below are the available models for different types of water treatment:
| Model | Container Size | Capacity (GPD) | TDS (ppm) | Application |
|---|
| Brackish Water Models |
|
|
|
|
| BW-C-100 | 20 Feet | 40,000 | 10,000 | Brackish water treatment |
| BW-C-200 | 40 Feet | 150,000 | 10,000 | Brackish water treatment |
| BW-C-200-2 | 2 x 40 Feet | 300,000 | 10,000 | Brackish water treatment |
| Sea Water Models |
|
|
|
|
| SW-C-100 | 20 Feet | 25,000 | 45,000 | Seawater desalination |
| SW-C-200 | 40 Feet | 132,000 | 45,000 | Seawater desalination |
| SW-C-200-2 | 2 x 40 Feet | 300,000 | 45,000 | Seawater desalination |
| Filtration Models |
|
|
|
|
| MF-C-100 | 20 Feet | 18 M3/Hour | N/A | Media filtration |
| MF-C-200 | 40 Feet | 100 M3/Hour | N/A | Media filtration |
| MF-C-200-2 | 2 x 40 Feet | 200 M3/Hour | N/A | Media filtration |
| Ultra Filtration Models |
|
|
|
|
| UF-C-100 | 20 Feet | 48 M3/Hour | N/A | Ultra-filtration |
| UF-C-200 | 40 Feet | 150 M3/Hour | N/A | Ultra-filtration |
| UF-C-200-2 | 2 x 40 Feet | 350 M3/Hour | N/A | Ultra-filtration |
Desalination Rate and Efficiency
The Containerized Water Treatment Plant boasts impressive desalination rates, ensuring high-quality output for various applications. The desalination rate is typically around 99% to 99.7%, making it an effective solution for both drinking water and wastewater purification.
High Recovery Rate: Achieve a recovery rate of 40% to 70% depending on the source water conditions.
Low Maintenance: Regular maintenance and monitoring ensure consistent high performance and extended lifespan of the system.
Customization Options
The 50TPD Containerized Water Treatment Plant can be tailored to meet specific project requirements. Whether you need a specific treatment capacity, special materials for construction, or additional features such as remote monitoring, our team will work closely with you to design the ideal system.
Why Choose Our Containerized Water Purification Systems?
Competitive Pricing: Offering unbeatable prices while maintaining superior quality, compared to local and international manufacturers.
Quick Delivery: With a manufacturing capacity of 50 sets per month, we ensure fast delivery within 15-30 days.
Flexible Payment Terms: We accept various payment methods such as T/T, Western Union, and PayPal for your convenience.
