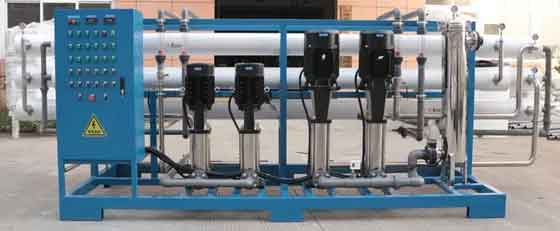

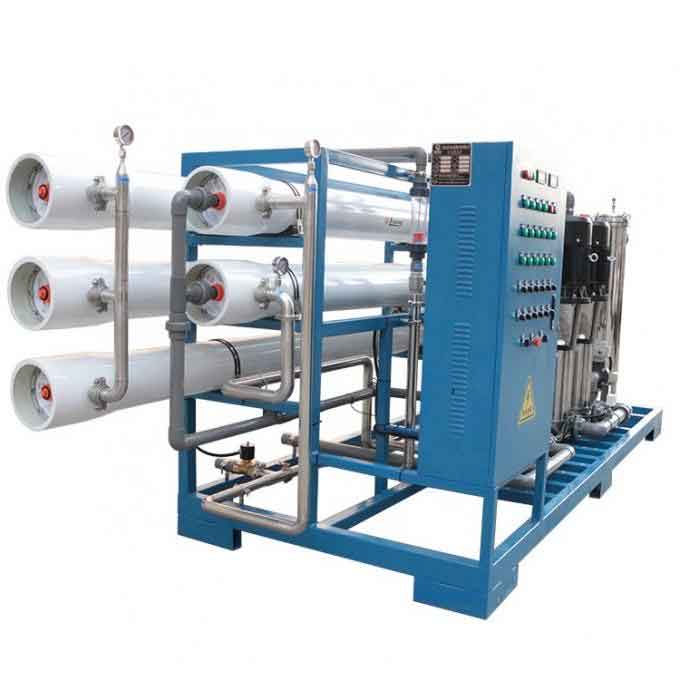

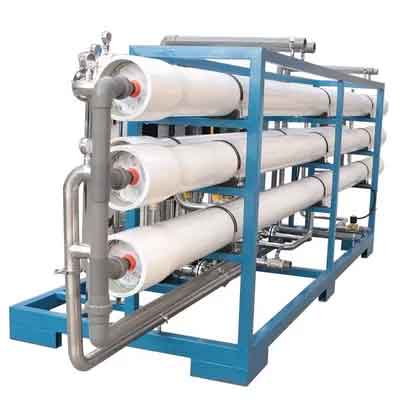

Double Pass 8TPH Industrial Reverse Osmosis Machine

Overview:
The Double Pass 8TPH Industrial Reverse Osmosis (RO) Machine is designed for large-scale water purification and desalination applications. This advanced water treatment system is engineered for industries that require high-quality purified water with a high desalination rate and low energy consumption. With a production capacity of 8000L/h (1600 GPD), this system provides effective purification of brackish, seawater, and tap water, making it ideal for applications in the food and beverage industry, chemical processing, textile manufacturing, and more. The system achieves a high desalination rate of 99.7%, ensuring clean water for various industrial processes.

Key Features:

• Double Pass Technology: Enhances water purification by removing up to 99.7% of total dissolved solids (TDS), bacteria, and organic compounds in two stages.

• High Desalination Rate: Achieves a desalination rate of 99% to 99.7%, ensuring high-quality water for critical applications.

• Compact Skid-Mounted Design: Easy to install and maintain, this system is built for large industrial setups.

• Automatic Operation: The system is designed with automatic features such as backwash, low water level protection, and automatic shut-off for high water levels.

• Durable Construction: Made with high-quality stainless steel and carbon steel materials for long-lasting performance.

• Advanced Control System: Can be controlled manually, electronically, or with a PLC for precision monitoring and automation.

• Energy Efficient: The system operates with a low power consumption of 5.0 kW, providing cost savings while maintaining high efficiency.

System Specifications:

• Capacity: 8000L/h (1600 GPD)

• Recovery Rate: 60-65%

• Feed Water TDS/ppm: <2000 ppm

• Water Temperature: 5-35˚C

• Desalination Rate: 99%-99.7%

• Power Supply: 380V, 415V, 220V (customizable)

• Power Consumption: 5.0 kW

• Material: SS304/SS316L, Carbon Steel

• Control: Electronic, Manual, PLC

• Membrane Type: Vontron, Hydranautics, or DOW 4040

• Pump Type: CNP High-Pressure Pump

System Features:

1. Automatic Backwash & Manual Backwash: Prevents membrane fouling and ensures long operational life.

2. Low Water Level Protection: Automatically switches on when water levels are low.

3. High Water Level Protection: Automatically shuts off when the water level exceeds a set limit.

4. Water Shortage Protection: Protects multi-stage pumps from damage due to insufficient water supply.

5. Full Stainless Steel Structure: Durable and easy to clean, ideal for industrial environments.

6. Advanced Indicators: Includes water flow, conductivity, and pressure indicators for accurate system monitoring.

7. World-Class Components: Uses top-tier components such as USA Filmtec Dow membranes, CNP pumps, and Runxin auto valves.

8. High Automation: Operates continuously with minimal manual intervention, reducing labor costs.

Flow Chart:
Raw Water → Raw Water Tank → Raw Water Pump → Sand Filter → Carbon Filter → Softener (optional) → Security Filter → Booster Pump → Reverse Osmosis System → Pure Water Tank → Water Supply Points

Model Overview:

Applications:

• Textile and Chemical Industry: Ideal for providing purified water in manufacturing and chemical processing.

• Food and Beverage: Ensures clean water for food production, beverage preparation, and bottled water manufacturing.

• Seawater & Brackish Water Desalination: Provides reliable desalination for coastal areas, ships, offshore platforms, and islands.

• Municipal Water Treatment: Suitable for large communities, schools, hospitals, factories, and restaurants that require purified water.

• Electronics Industry: Essential for rinsing water in the production of electronic components such as silicon wafers and ICs.

• Industrial Water Recycling: Ideal for use in recycling and reusing water in industrial applications, reducing operational costs.

Why Choose Fenigal’s Double Pass 8TPH Industrial Reverse Osmosis Machine?
Fenigal's Double Pass 8TPH RO system offers the highest level of efficiency and reliability for industrial water treatment. With advanced features like double-pass filtration, automatic backwash, and protection against power issues, this system provides consistent performance while ensuring low operational costs. Its rugged construction and versatile application make it ideal for industries ranging from food and beverage to electronics and chemical processing.
